ProSecure Unified Threat Management (UTM) Appliance Reference Manual
Content Filtering and Optimizing Scans 6-9
v1.0, January 2010
To configure e-mail content filtering:

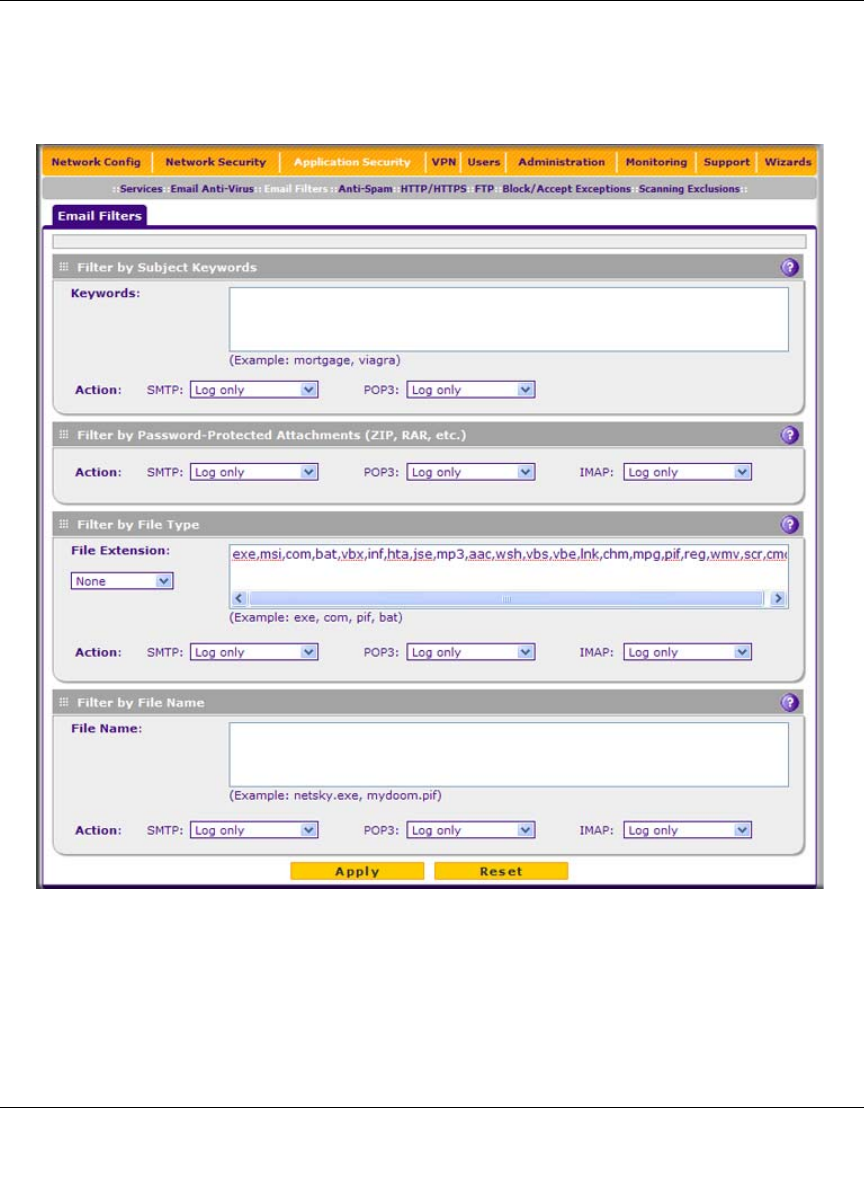

1. Select Application Security > Email Filters from the menu. The Email Filters screen
displays.
Figure 6-3
