ProSecure Unified Threat Management (UTM) Appliance Reference Manual
6-42 Content Filtering and Optimizing Scans
v1.0, January 2010

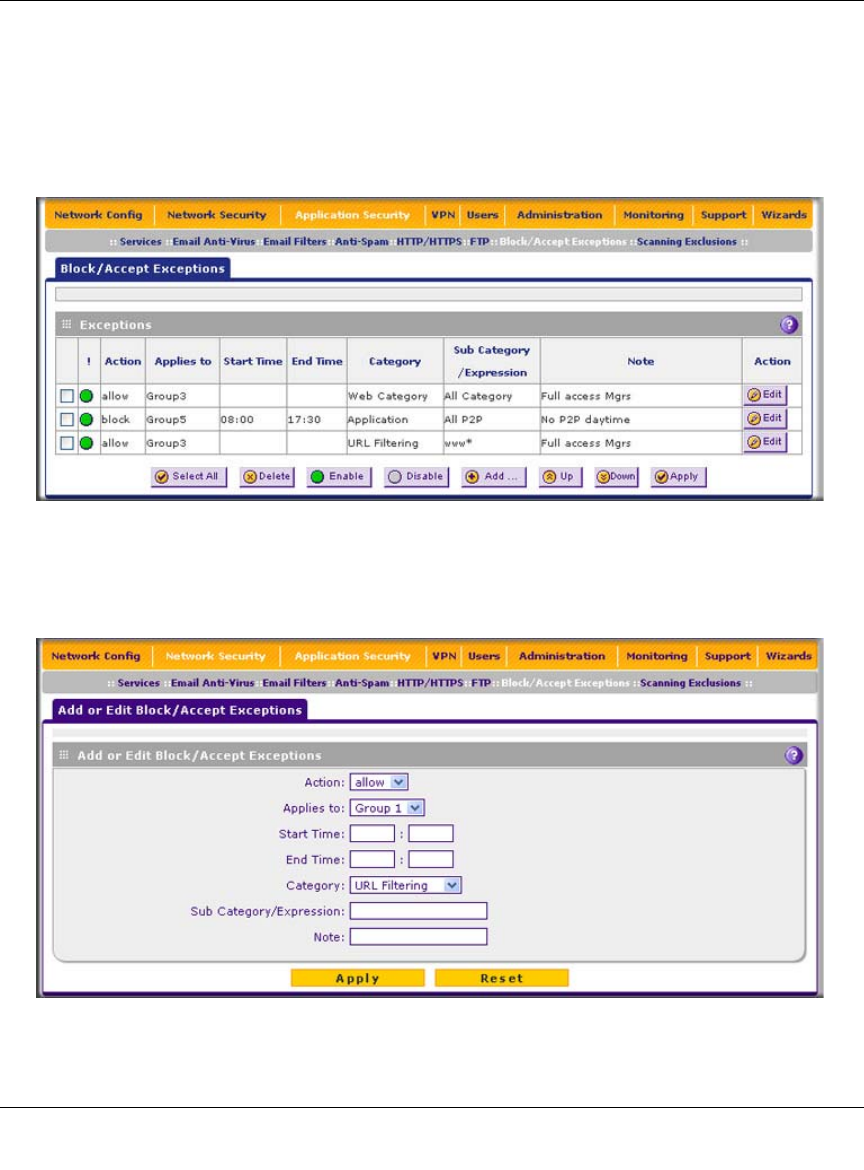

To set Web access exception rules:
1. Select Application Security > Block/Accept Exceptions from the menu. The Block/Accept
Exceptions screen displays. This screen shows the Exceptions table, which is empty if you
have not specified any exception rules. (Figure 6-18 shows three exception rules in the
Exceptions table as an example.)
2. Under the Exceptions table, click the Add table button to specify an exception rule. The Add
or Edit Block/Accept Exceptions screen displays.
Figure 6-18
Figure 6-19
