ProSecure Unified Threat Management (UTM) Appliance Reference Manual
5-36 Firewall Protection
v1.0, January 2010
To create a QoS profile:
1. Select Network Security > Firewall Objects from the menu. The Firewall Objects submenu
tabs appear, with the Services screen in view.
2. Click the QoS Profiles submenu tab. The QoS Profiles screen displays. Figure 5-21 shows
some profiles in the List of QoS Profiles table as an example.
The screen displays the List of QoS Profiles table with the user-defined profiles.
3. Under the List of QoS Profiles table, click the Add table button. The Add QoS Profile screen
displays.
4. Enter the settings as explained in Table 5-7 on page 5-37.

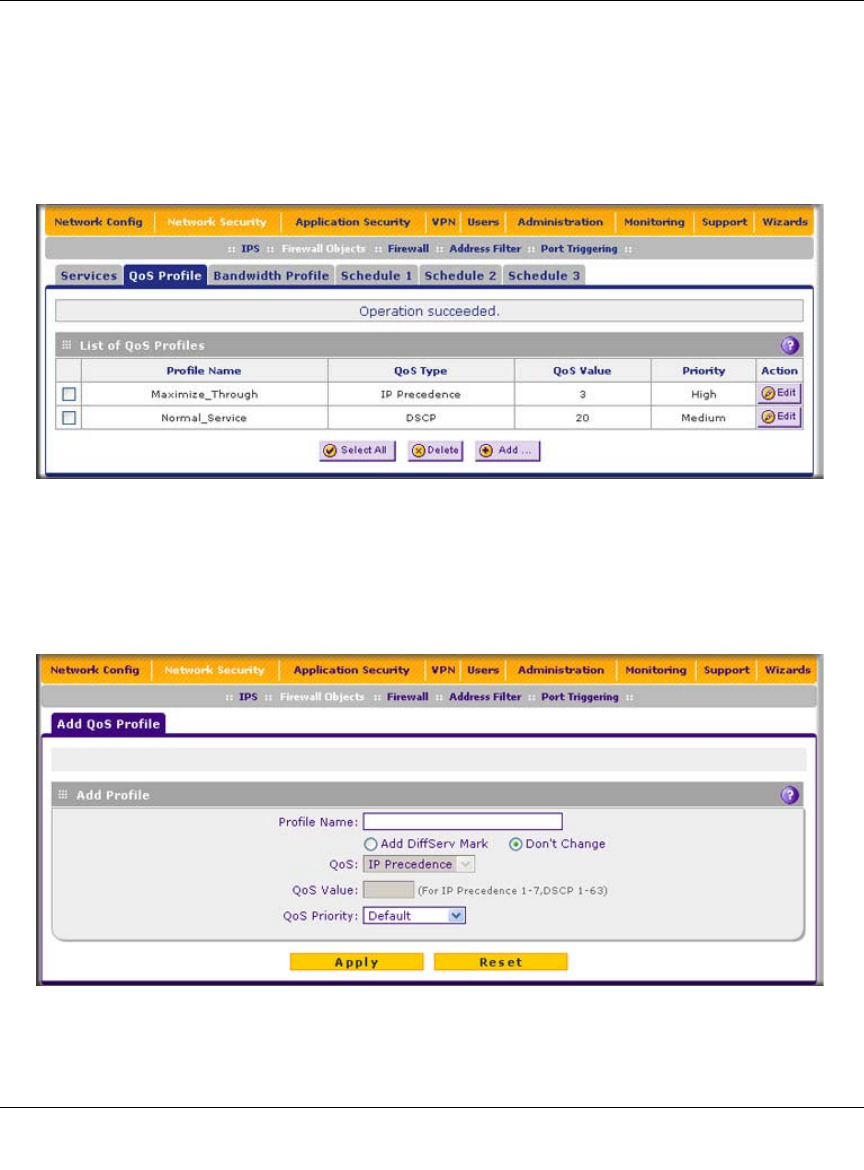

Figure 5-21
Figure 5-22
