ProSecure Unified Threat Management (UTM) Appliance Reference Manual
3-6 Manually Configuring Internet and WAN Settings
v1.0, January 2010
To manually configure the WAN1 ISP (dual-WAN port models) or WAN ISP (single-WAN port
models) settings:
1. On a dual-WAN port model, select Network Configuration > WAN Settings > WAN1 ISP
Settings. The WAN Settings tabs appear, with the WAN1 ISP Settings screen in view (see
Figure 3-1 on page 3-3, which shows a dual-WAN port model’s screen). On a single-WAN
port model, select Network Configuration > WAN Settings > WAN ISP Settings. The WAN
ISP Settings screen displays. Figure 3-4 shows the ISP Login section of the screen.
2. In the ISP Login section of the screen, select one of the following options:
• If your ISP requires an initial login to establish an Internet connection, click Yes (this is
the default).
• If a login is not required, click No and ignore the Login and Password fields.
3. If you clicked Ye s , enter the login name in the Login field and the password in the Password
field. This information is provided by your ISP.
4. In the ISP Type section on the screen, select the type of ISP connection that you use from the
three listed options. By default, “Other (PPPoE)” is selected, as shown in Figure 3-5.

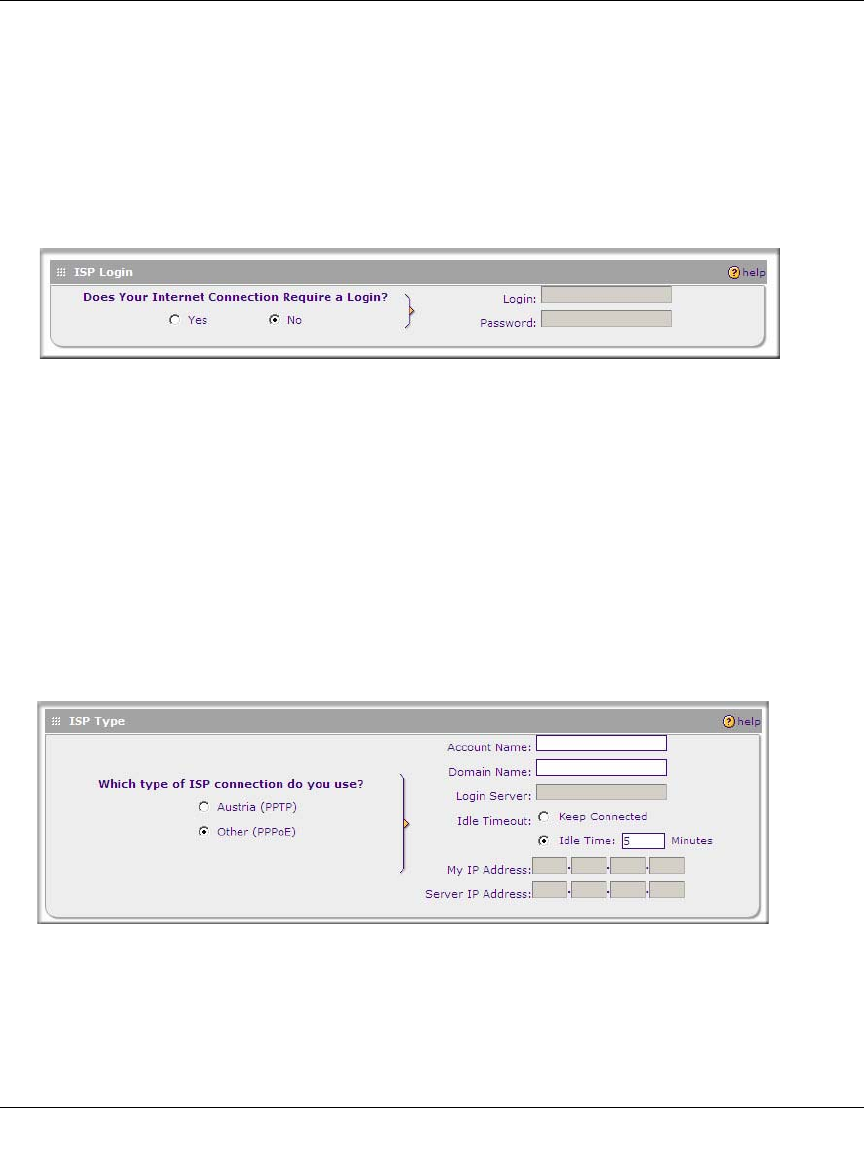

Figure 3-4
Figure 3-5
