ProSecure Unified Threat Management (UTM) Appliance Reference Manual
9-24 Managing Users, Authentication, and Certificates
v1.0, January 2010

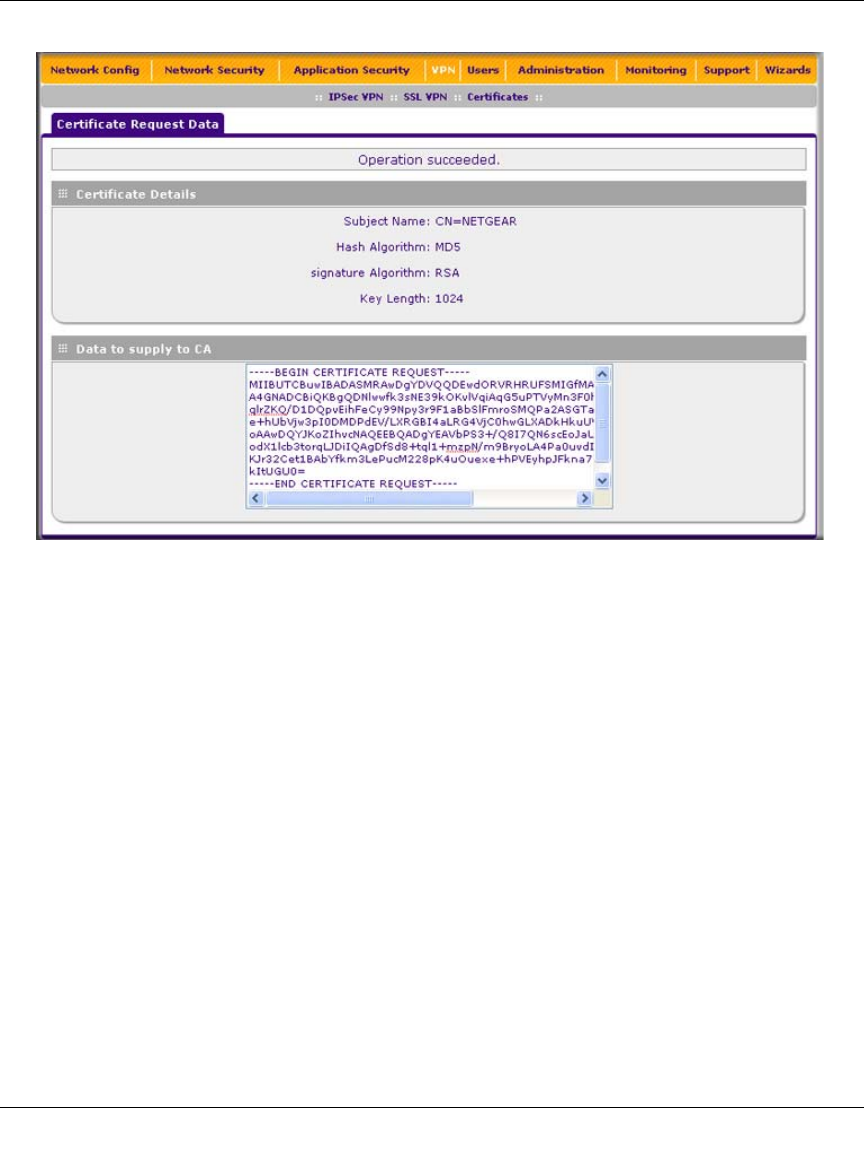

5. Copy the contents of the Data to supply to CA text box into a text file, including all of the data
contained from “----BEGIN CERTIFICATE REQUEST---” to “---END CERTIFICATE
REQUEST---”.
6. Submit your SCR to a CA:
a. Connect to the website of the CA.
b. Start the SCR procedure.
c. When prompted for the requested data, copy the data from your saved text file (including
“----BEGIN CERTIFICATE REQUEST---” and “---END CERTIFICATE REQUEST”).
d. Submit the CA form. If no problems ensue, the digital certificate is issued by the CA.
7. Download the digital certificate file from the CA and store it on your computer.
8. Return to the Certificates screen (see Figure 9-13 on page 9-22) and locate the Self Certificate
Requests section.
9. Select the checkbox next to the self certificate request.
Figure 9-14
