ProSecure Unified Threat Management (UTM) Appliance Reference Manual
6-36 Content Filtering and Optimizing Scans
v1.0, January 2010
To configure the HTTPS scan settings:
1. Select Application Security > HTTP/HTTPS from the menu. The HTTP/HTTPS submenu
tabs appear, with the Malware Scan screen in view.
2. Click the HTTPS Settings submenu tab. The HTTPS Settings screen displays.
3. Enter the settings as explained in Table 6-10 on page 6-37.

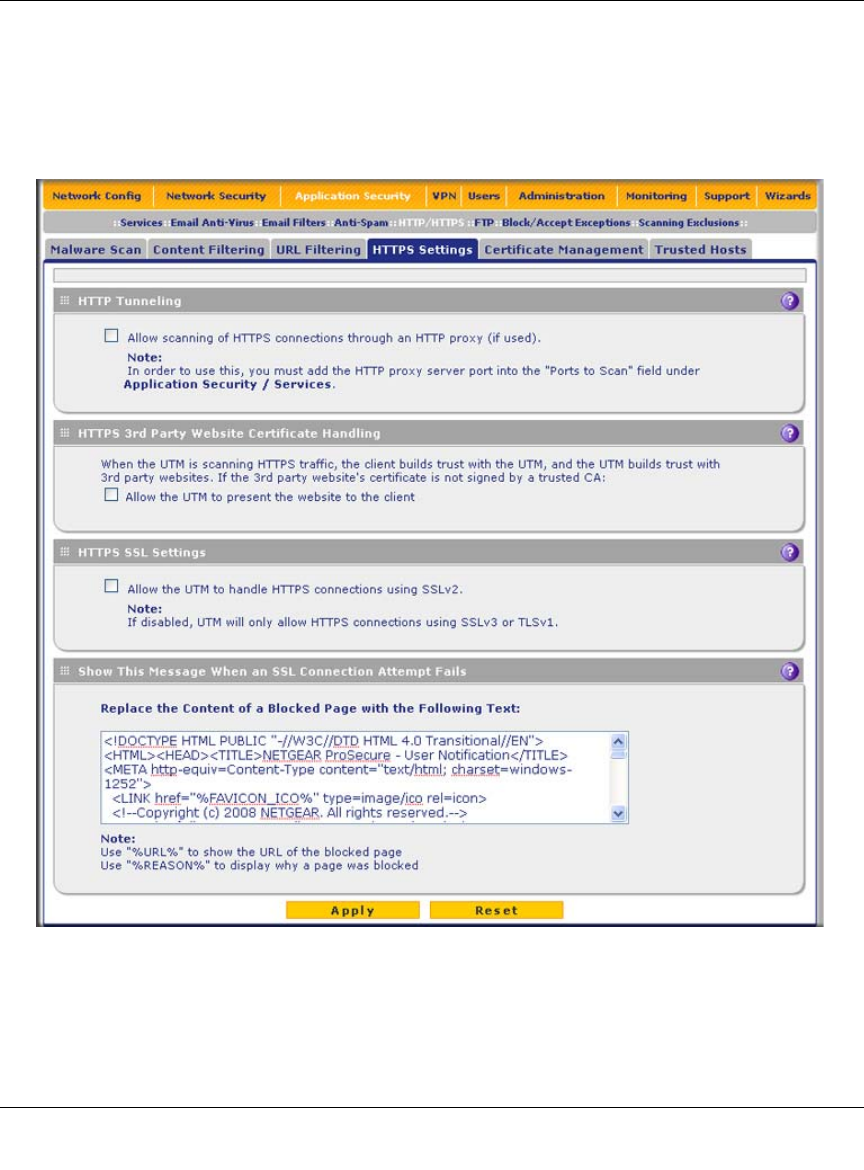

Figure 6-15
